Faital Pro 10RS430

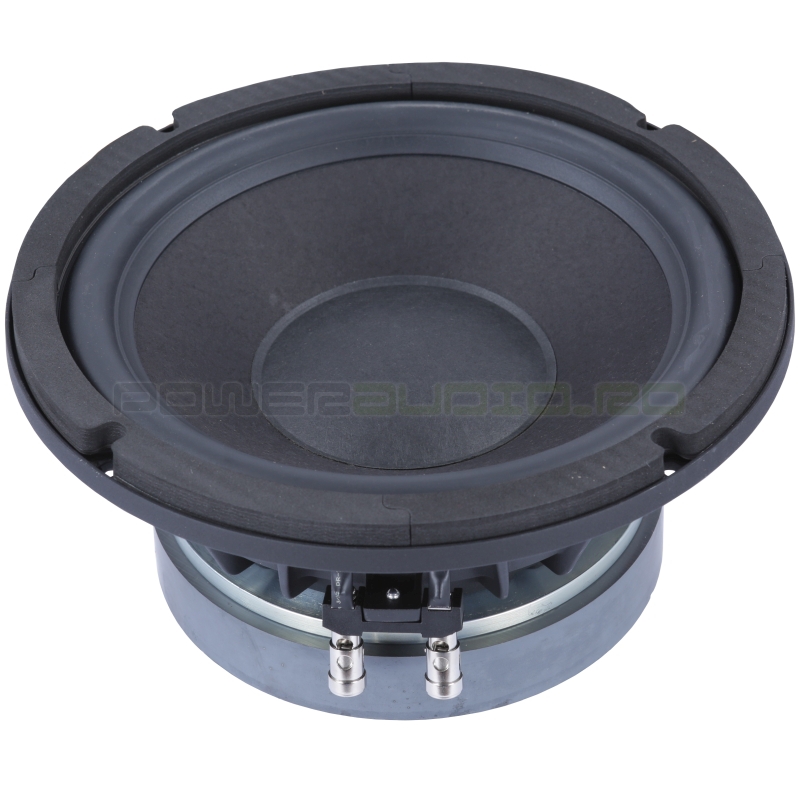

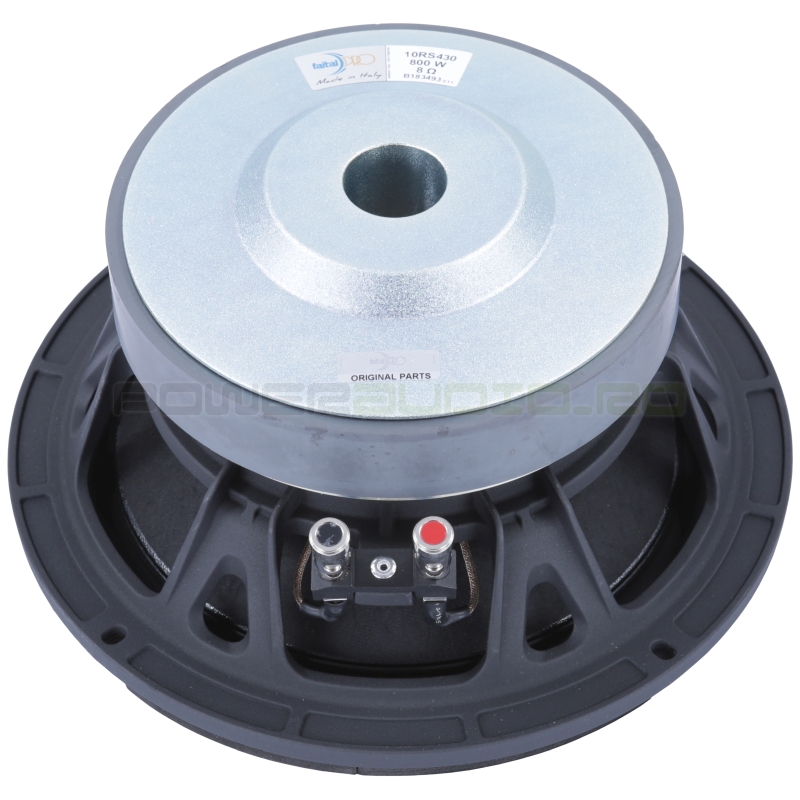

Faital Pro 10RS430 400W 8 Ohm Loudspeaker Driver

The Faital Pro 10RS430 is a powerful 10-inch speaker that delivers exceptional sound quality and can handle up to 400W of power. This makes it an ideal choice for a range of applications, including studio monitors and home hi-fi systems.

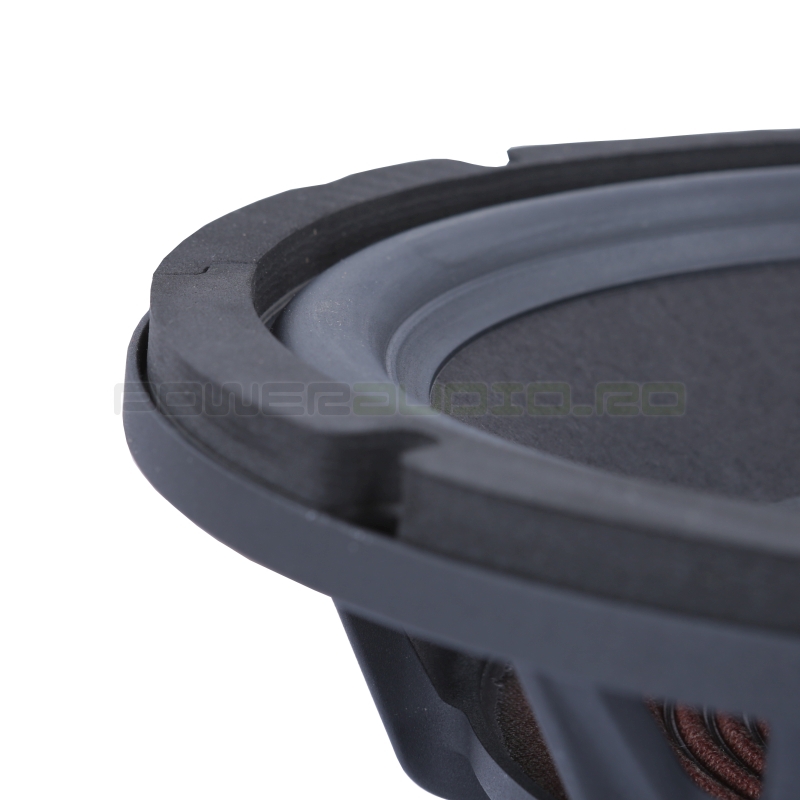

With a focus on high-quality construction and advanced design, the Faital Pro 10RS430 produces clear sound with a rich, full-bodied tone extending down to the lower octaves Its flexible half roll cone surround contributes to a low Fs of 32Hz, making the 10RS430 capable of serious bass response from a small tranducer.

Technical specifications

    Nominal Diameter: 250 mm (10 in)
    Overall Diameter: 261 mm (10.28 in)
    Bolt Circle Diameter: 246 mm (9.69 in)
    Baffle Cutout Diameter: 230 mm (9.06 in)
    Overall Depth: 136 mm (5.35 in)
    Flange/Gasket Thickness: 17 mm (0.67 in)
    Impedance: 8 ohm
    Minimum Impedance: 8 ohm
    AES Power: 400 W
    Program Power: 800 W
    Sensitivity: 91 dB
    Frequency Range: 30:2500 kHz
    Voice Coil Diameter: 65 mm (2.56 in)
    Voice Coil Material: Al
    Voice Coil Former: Glass Fiber
    Voice Coil Depth: 29.8 mm (1.17 in)
    Magnetic Gap Depth: 8 mm (0.31 in)
    Surround Type: Half Roll
    Spider Profile: 1x constant height waves
    Chassis Material: Aluminum
    Magnet Material: Ferrite Ring
    Demodulating Ring: Aluminum Ring
    Flux Density: 1.50 T
    Driver Displacement Volume: 2 L (0.071 ft^3)

Thiele and small parameters

    Resonance (Fs) - 32 Hz
    DC Resistance (Re) - 6.8 Ohm
    Electrical Q (Qes) - 0.29
    Mechanical Q (Qms) - 10.0
    Total Q (Qts) - 0.28
    Compliance Equivalent Volume (Vas) - 59.2 L
    Diaphragm Area (Sd) - 344 cm2
    Maximum Linear Excursion (Xmax) - 13.57 mm
    Maximum Mechanical Excursion (Xdamage) - 21.5 mm
    Moving Mass - System (Mms) - 69.0 g
    Force Factor (BL) - 18 Tm
    Voice Coil Inductance (Le) - 0.78 mH
    Moving Mass - Diaphragm (Mmd) - 61.8 g
    Compliance (Cms) - 0.36 mm/N
    Mechanical Resistance (Rms) - 1.4 Kg/s
    Reference Efficiency (Eta Zero) - 0.65 %
    Efficiency Bandwidth Product (EBP) - 110

Shipping Information

    Net Weight: 6.8 kg (15.0 lb)
    Shipping Weight: 7.3 kg (16.1 lb)
    Shipping Box: 294 x 290 x 203 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
