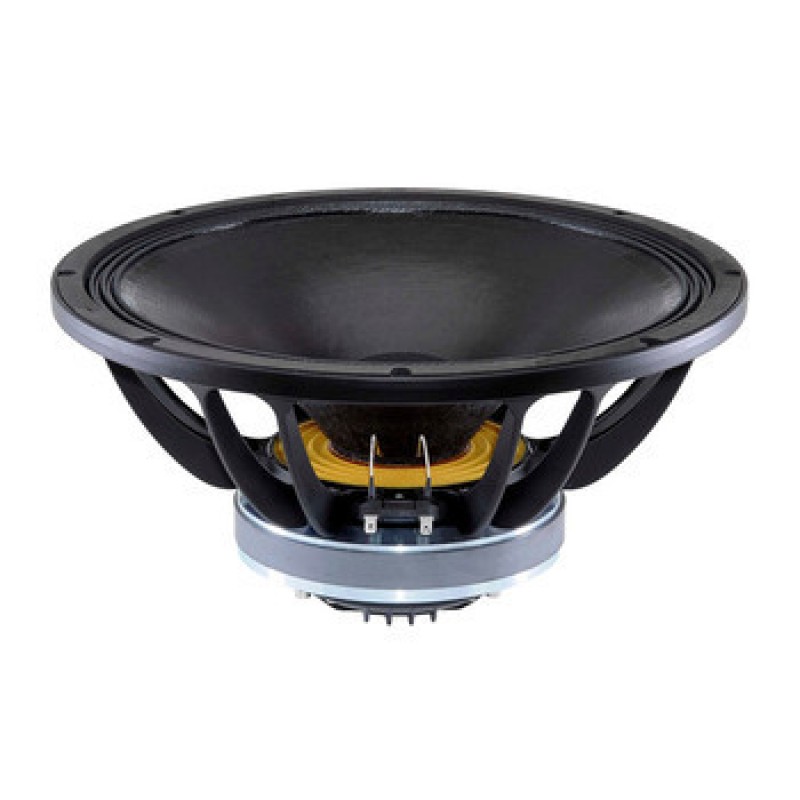

B&C 15FCX76

15FCX76

• Specifications
  • Nominal diameter
    380 mm (15.0 in)

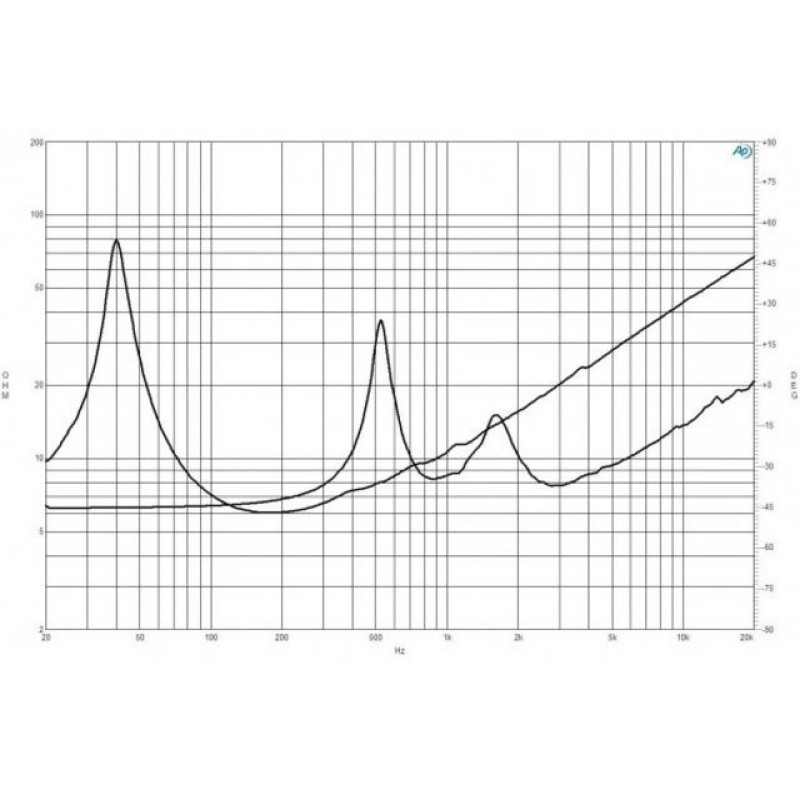

  • Nominal impedance
    8 Ω
  • Minimum impedance lf
    6.0 Ω
  • Minimum impedance hf
    7.8 Ω

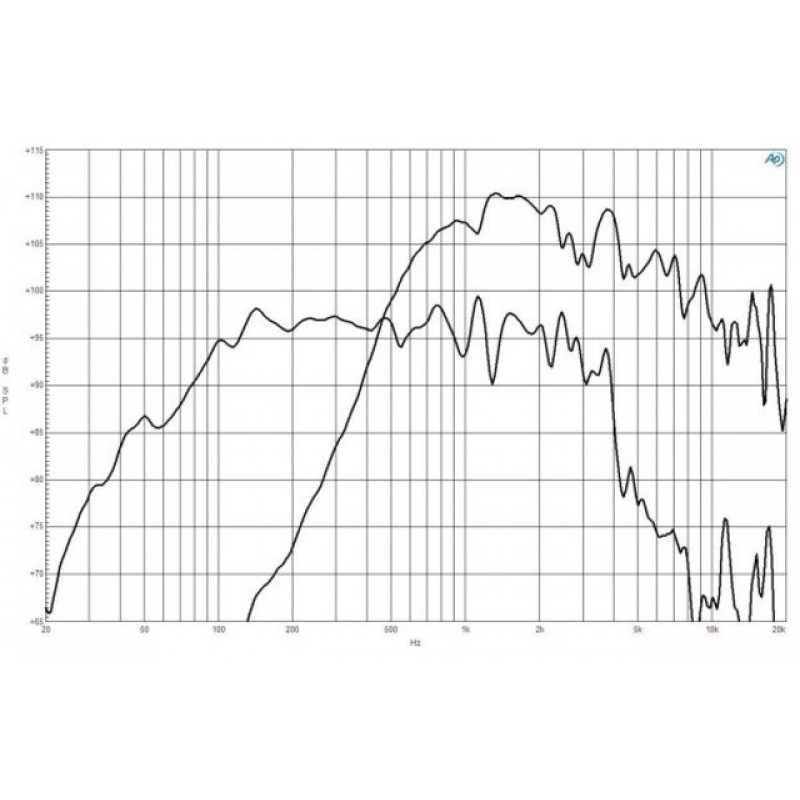

  • Frequency range
    40 - 18000 Hz

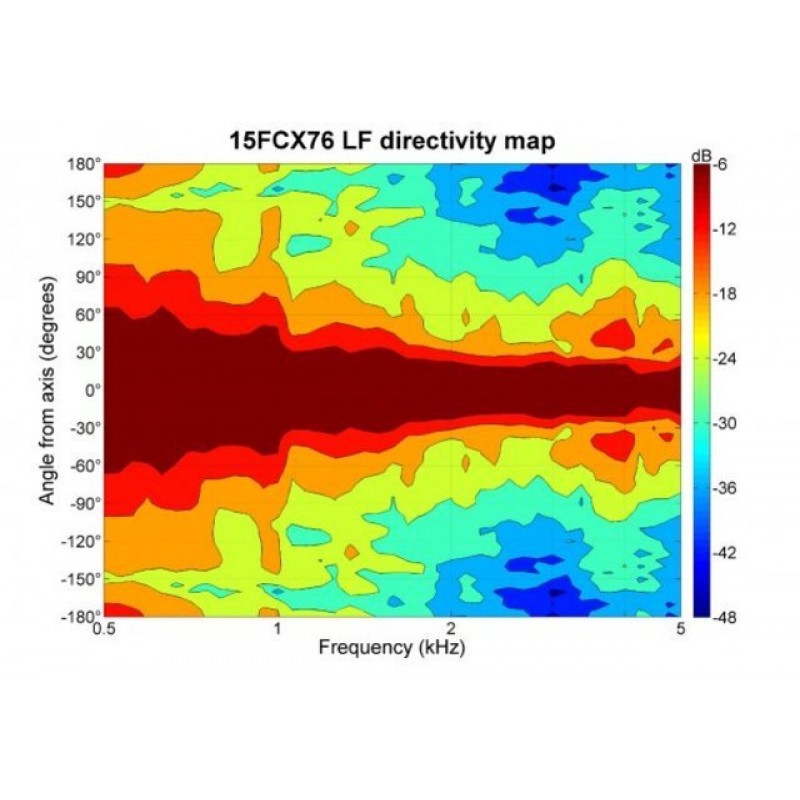

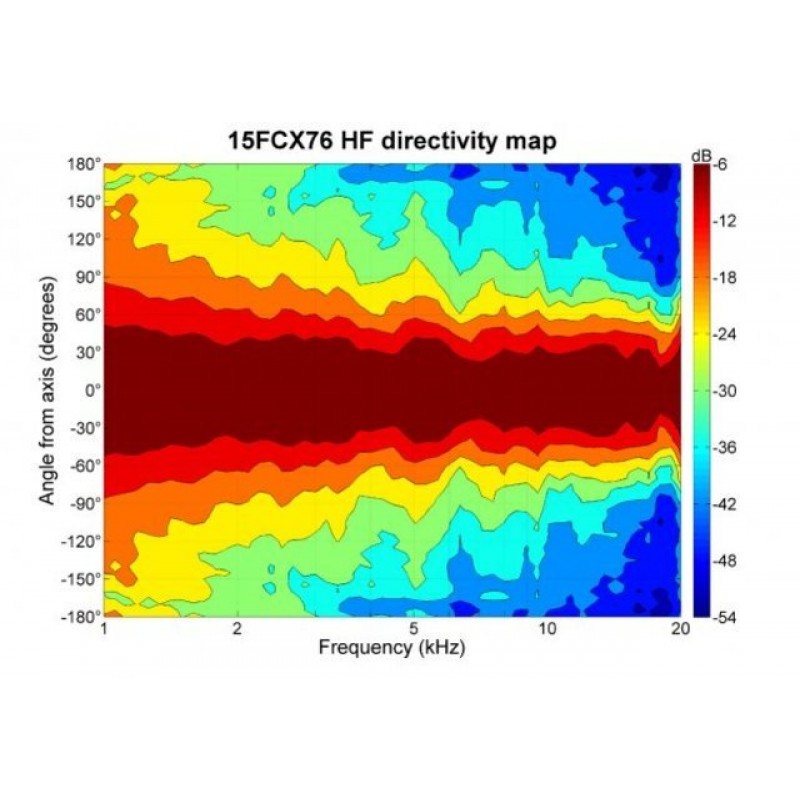

  • Dispersion angle *
    80 °
  • Magnet material
    Ceramic
• Specifications LF Unit
  • LF Sensitivity *
    98.0 dB
  • LF Nominal Power Handling *
    400 W
  • LF Continuous Power Handling *
    800 W
  • LF Voice Coil Diameter
    76 mm (3.0 in)
  • LF Winding Material
    Copper
• Specifications HF Unit
  • HF Sensitivity *
    105.0 dB
  • HF Nominal Power Handling *
    80 W
  • HF Continuous Power Handling *
    160 W
  • HF Voice Coil Diameter
    75 mm (3.0 in)
  • HF Winding Material
    Aluminium
  • Diaphragm material
    Titanium
  • Recommended crossover *
    1.2 kHz
• Parameters
  • Fs
    40 Hz
  • Re
    5.2 Ω
  • Qes
    0.47
  • Qms
    8.3
  • Qts
    0.44
  • Vas
    187.0 dm³ (6.6 ft³)
  • Sd
    855.0 cm² (132.5 in²)
  • η₀
    2.5 %
  • Xmax
    6.5 mm
  • Xvar
    7.5 mm
  • Mms
    87 g
  • Bl
    15.6 Txm
  • Le
    1.2 mH
  • EBP
    85 Hz
• Mounting And Shipping Info
  • Overall diameter
    393 mm (15.5 in)
  • Bolt circle diameter
    374 mm (16.7 in)
  • Baffle cutout diameter
    353 mm (13.9 in)
  • Depth
    199 mm (7.83 in)
  • Flange and gasket thickness
    16 mm (0.62 in)
  • Net weight
    9.0 kg (19.8 lb)
  • Shipping units
    1
  • Shipping weight
    9.7 kg (21.4 lb)
  • Shipping box
    446x439x253 mm (17.5x17.3x10 in)
• Service Kit
  • Service kit lf
    RCK15FCX768
  • Replacement diaphragm
    MMD3BTN8M

• Alternative Magnet
  • 15CXN76
