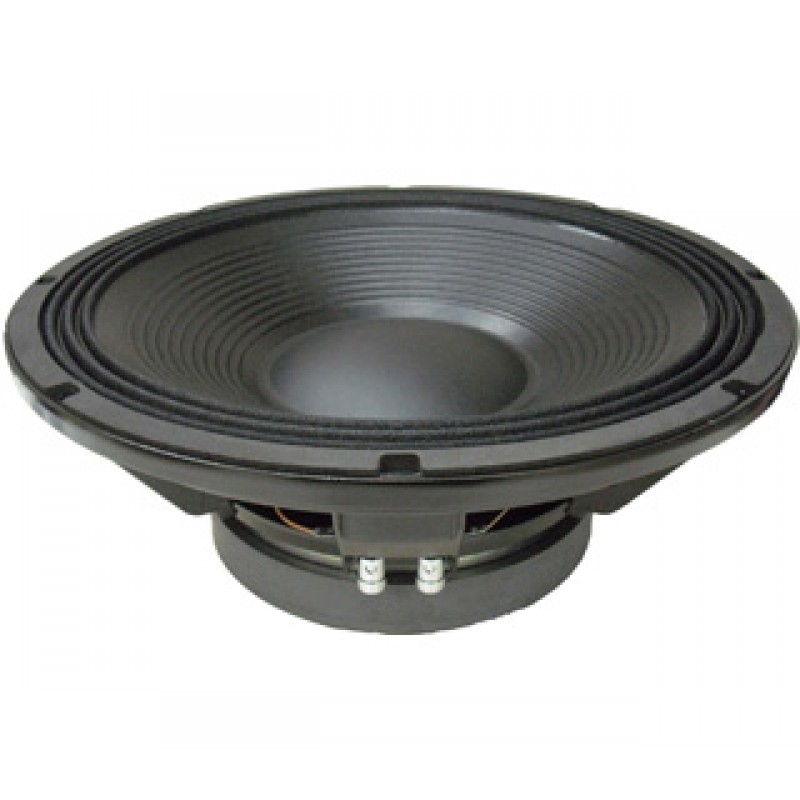

Cere mai multe informatii despre Beyma 15P1000Fe la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.
Preţ:
1.150,00 Lei
Fără TVA: 966,39 Lei
Dep. Ext. - livrare 10-14 zile
-
+
GRAPH
TECHNICAL SPECIFICATIONS
| Nominal diameter | 380 mm 15 in |
| Nominal impedance | 8 ohm |
| Minimum impedance | 6.3 ohm |
| Power capacity | 1000 W AES |
| Program power | 2000 W |
| Sensitivity | 97 dB 1 W @ 1 m @ 2Π |
| Frequency range | 30-2000 Hz |
| Recommended enclosure volume | 40 / 150 l / 1.4 / 5.3 ft³ |
| Voice coil diameter | 100 mm 4 in |
| BL factor | 23.5 N / A |
| Moving mass | 0.149 kg |
| Winding length | 21 mm |
| Air gap height | 12 mm |
| Xdamage pp | 52 mm |
THIELE SMALL PARAMETERS
| Fs | 45 Hz |
| Re | 5.1 ohm |
| Qms | 11.46 |
| Qes | 0.38 |
| Qts | 0.37 |
| Vas | 85.9 l |
| Cms | 84.2 µm / N |
| Rms | 3.71 kg / s |
| Efficiency % | 2 |
| Sd | 0.0855 m² |
| Xmax | 8 mm |
| Vd | 685 cm³ |
| Le @1 kHz | 2 mH |
CONSTRUCTIVE DETAILS
| Net weight | 12.1 kg 26.62 lb |
| Total weight | 13.6 kg 29.92 lb |
| Magnet | Ferrite |
Descarca fisa tehnica
