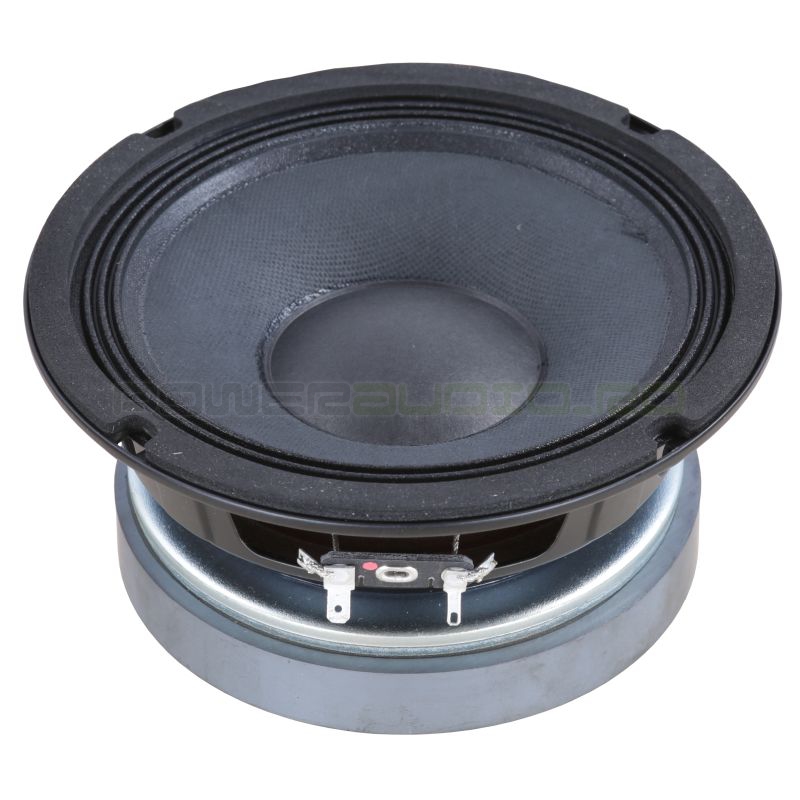

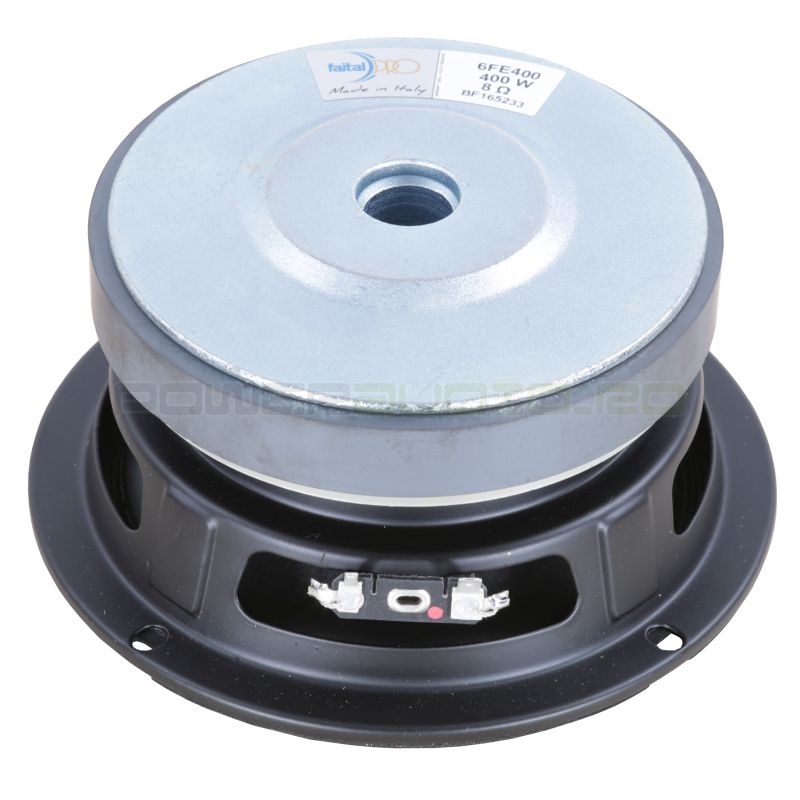

Faital Pro 6FE400 - 8 Ohmi

Technical specifications

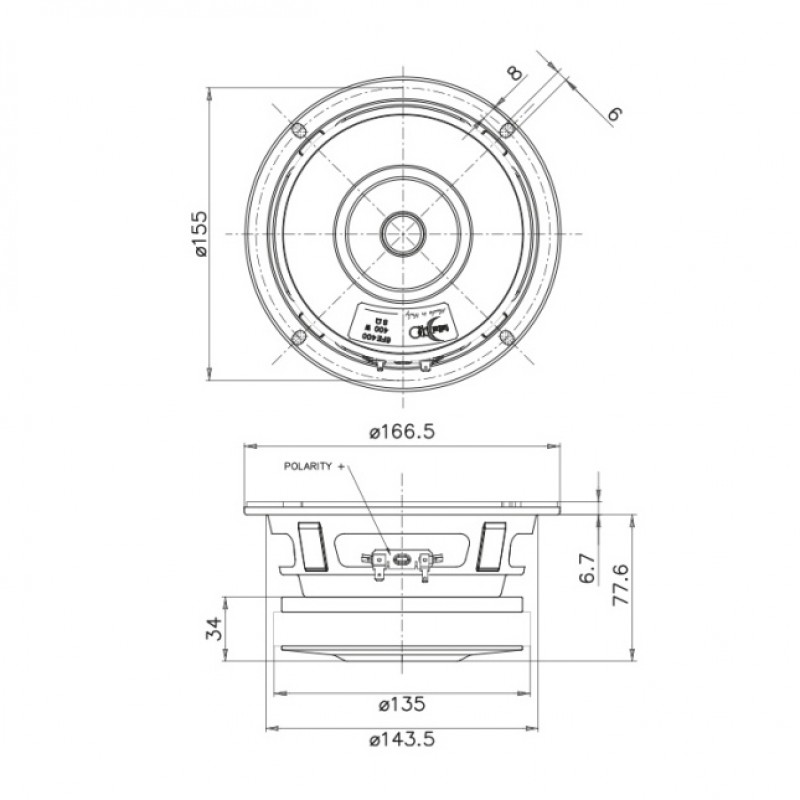

• Nominal Diameter: 160 mm (6in)
• Overall Diameter: 166.5 mm (6.56in)
• Bolt Circle Diameter: 155 mm (6.10in)
• Baffle Cutout Diameter: 146 mm (5.75in)
• Overall Depth: 84 mm (3.31in)
• Flange/Gasket Thickness: 7 mm (0.28in)
• Impedance: 8 ohm
• Minimum Impedance: 6.2 ohm
• AES Power: 200 W
• Program Power: 400 W
• Sensitivity: 94 dB
• Frequency Range: 100:7000 Hz
• Voice Coil Diameter: 44 mm (1.73in)
• Voice Coil Material: Al
• Voice Coil Former: Al
• Voice Coil Depth: 12.2 mm (0.48in)
• Magnetic Gap Depth: 8 mm (0.31in)
• Surround Type: Triple
• Spider Profile: 1x constant height waves
• Chassis Material: Steel
• Magnet Material: Ferrite Ring
• Demodulating Ring: No
• Flux Density: 1.10 T
• Driver Displacement Volume: 0.7 L (0.025ft^3)

Thiele and small parameters

• Resonance (Fs) - 100 Hz
• DC Resistance (Re) - 5.0 Ohm
• Electrical Q (Qes) - 0.40
• Mechanical Q (Qms) - 3.7
• Total Q (Qts) - 0.36
• Compliance Equivalent Volume (Vas) - 5.0 L
• Diaphragm Area (Sd) - 141 cm²
• Maximum Linear Excursion (Xmax) - 4.77 mm
• Maximum Mechanical Excursion (Xdamage) - 15.5 mm
• Moving Mass - System (Mms) - 14.0 g
• Force Factor (BL) - 10.5 Tm
• Voice Coil Inductance (Le) - 0.42 mH
• Moving Mass - Diaphragm (Mmd) - 12.1 g
• Compliance (Cms) - 0.18 mm/N
• Mechanical Resistance (Rms) - 2.4 Kg/s
• Reference Efficiency (Eta Zero) - 1.22 %
• Efficiency Bandwidth Product (EBP) - 251

Shipping Information

• Net Weight: 2.7 kg (6.0lb)
• Shipping Weight: 2.9 kg (6.4lb)
• Shipping Box: 190 x 185 x 103 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
