Lavoce WAF124.02

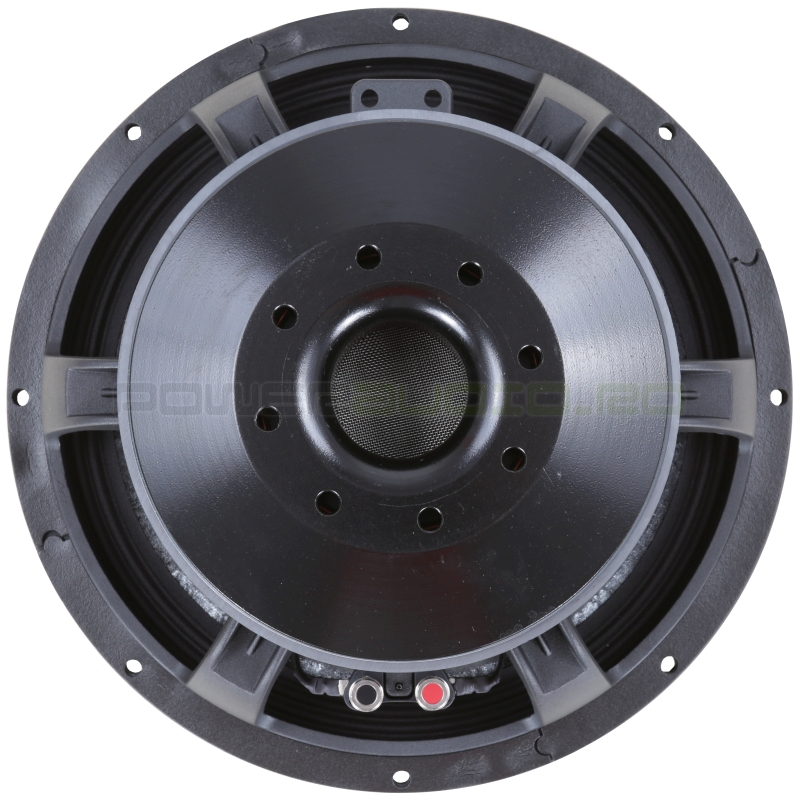

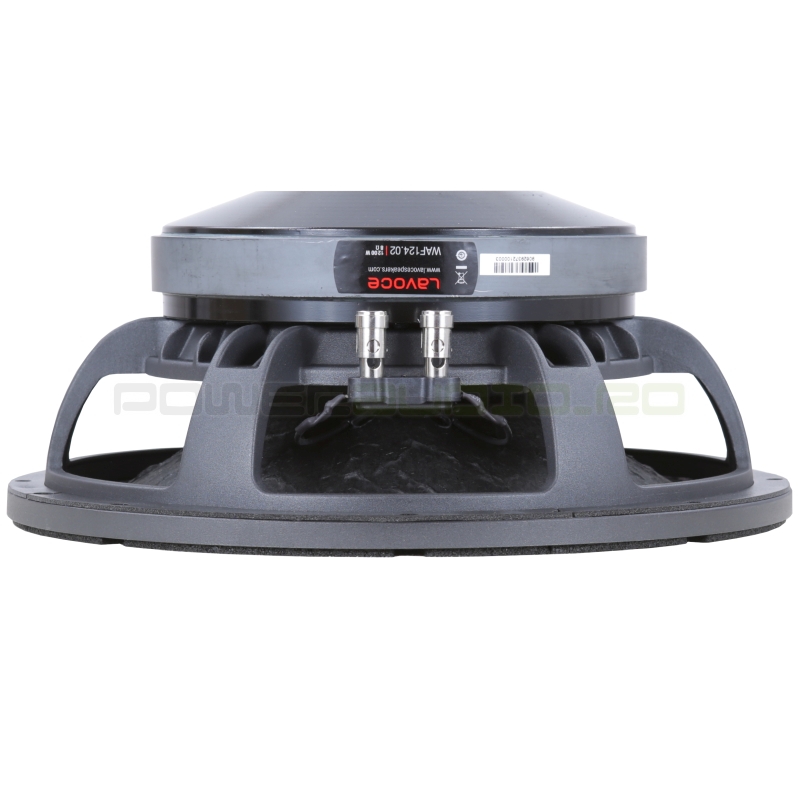

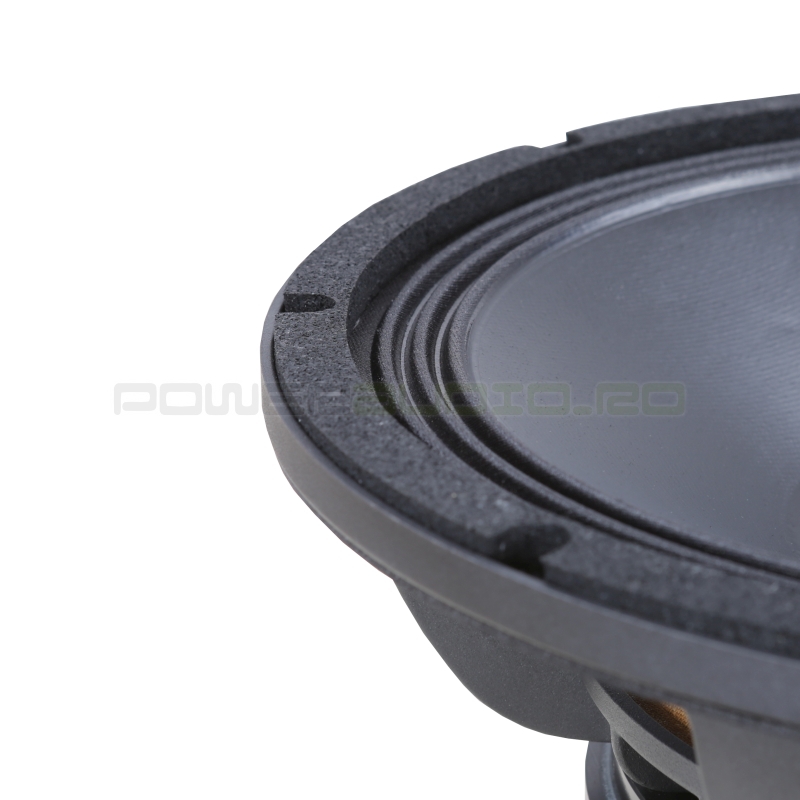

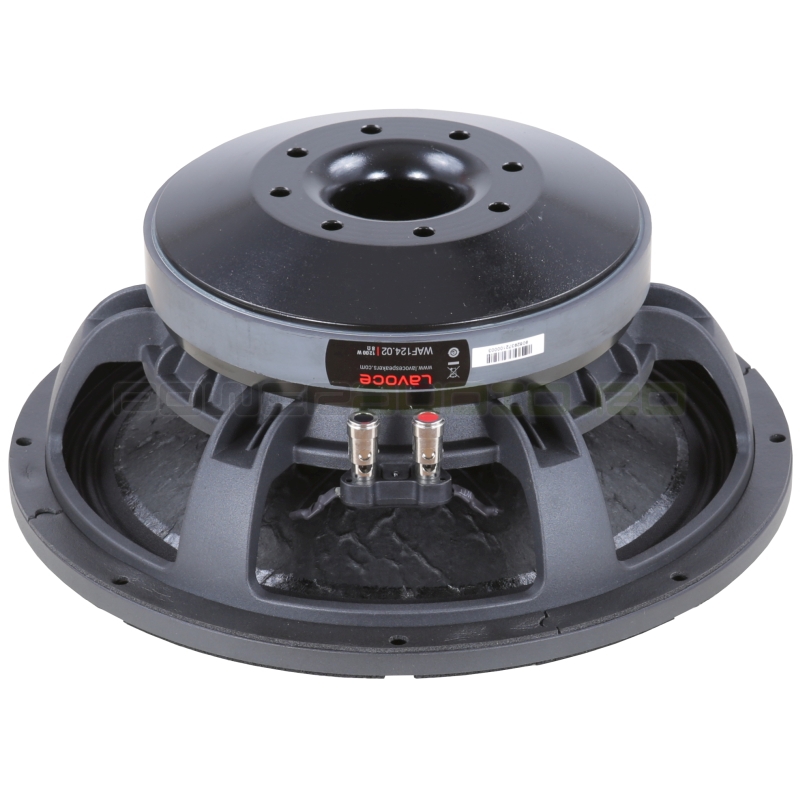

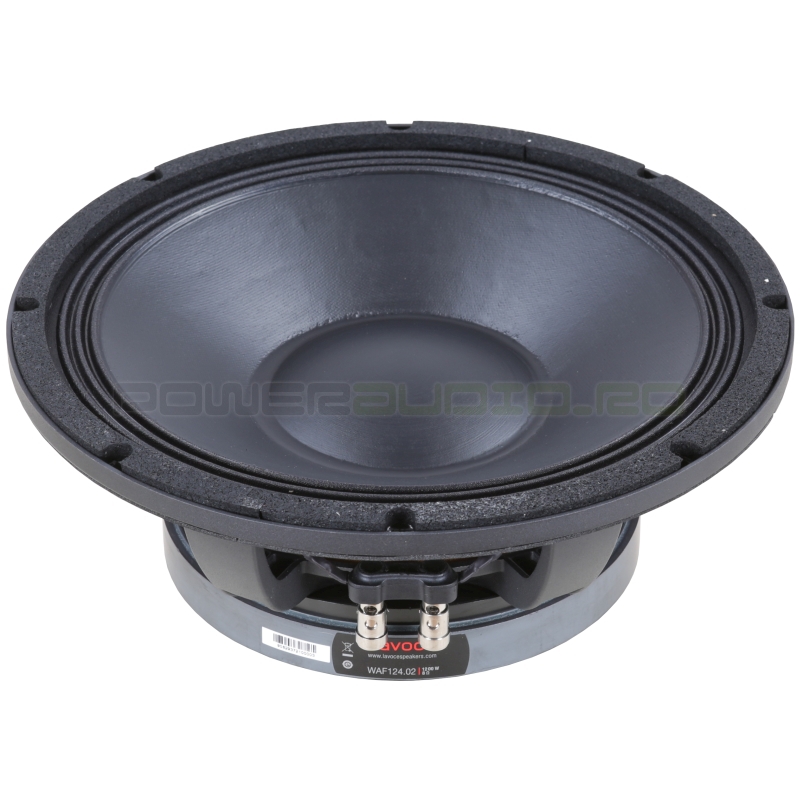

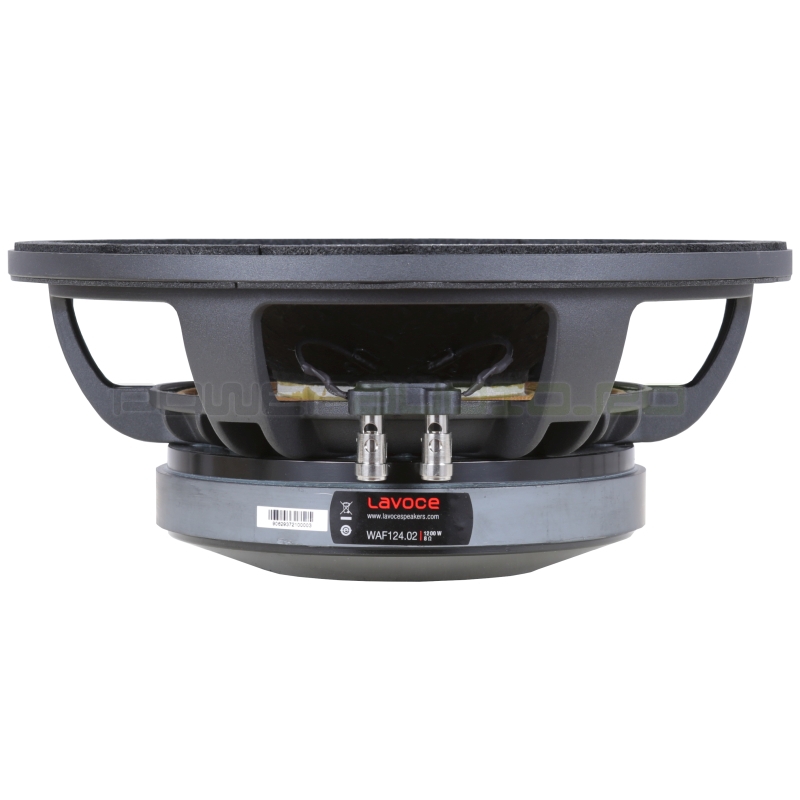

Lavoce WAF124.02 - 12" 600W 8 Ohm Loudspeaker

Key features

Technical specifications

    Nominal Diameter: 300 mm (12in)
    Impedance: 8 Ohm
    Minimum Impedance: 5.6 Ohm
    AES Power: 600 W
    Program Power: 1200 W
    Sensitivity: 96.5 dB
    Frequency Range: 50 - 2500 Hz
    Voice Coil Material: CCAW
    Voice Coil Former: Polyimide
    Voice Coil Depth: 23.2 mm (0.91in)
    Magnetic Gap Depth: 10 mm (0.39in)
    Cone Material: Water Resistant Treated Paper + Water Proof Front Side Treatment
    Surround Material: Polycotton
    Chassis Material: Aluminium
    Magnet Material: ferrite
    Magnet Dims: 200 x 110 x 22 mm
    Driver Displacement Volume: 2.93 l (0.104ft3)
    Recommended Enclosure: 56 l (1.98ft3)
    Recommended Tuning: 65 Hz

Thiele and small parameters

    DC Resistance (Re) - 4.9 Ohm
    Resonance (Fs) - 49 Hz
    Moving Mass - System (Mms) - 79 g
    Compliance (Cms) - 0.132 mm/N
    Force Factor (BL) - 18.22 Tm
    Mechanical Q (Qms) - 4.31
    Electrical Q (Qes) - 0.36
    Total Q (Qts) - 0.33
    Compliance Equivalent Volume (Vas) - 52.65 L
    Voice Coil Inductance (Le) - 1.03 mH
    Diaphragm Area (Sd) - 531 cm2
    Reference Efficiency (Eta Zero) - 1.67% %
    Efficiency Bandwidth Product (EBP) - 136
    Maximum Linear Excursion (Xmax) - 9.1 mm
    Maximum Mechanical Excursion (Xmech) - 14.6 mm

Shipping Information

    Net weight: 11.7 kg (25.8lb)
    Multipack size (WxDxH): 356 x 356 x 179 mm (14 x 14 x 7in)
    Multipack weight: 13.1 kg (28.9lb)
