Cere mai multe informatii despre Oberton ND5071 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.016,76 Lei
Fără TVA: 854,42 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton ND5071
Puncte de recompensă: 20
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: Oberton ND5071 driver profesional driver oberton driver driver 2 inch driver 2" driver neodimium driver prindere suruburi

The ND5071 is powerful 2" neodymium HF driver features an integral dome and suspension made of special polyester, providing exceptional high output with low distortion and frequency response with high linearity. The voice coil assembly is easily fielded replaceable without soldering. It is designed for a wide variety of applications in high quality, high power professional reinforcement systems and stage monitors.





SPECIFICATION

MATERIALS OF CONSTRUCTON

Throat diameter
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (1-20 kHz)
Program Power Capacity  (1-20 kHz)
Sensitivity (2-15 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density

50.8 mm (2 in.)
8/16 Ohms
7.8/12 Ohms
6.5/10 Ohms
75 W
150 W
109 dB
0,8 - 16 kHz
1 kHz or higher 12 dB/oct.min
72 mm (2,85 in.)
1.95 T

Diaphragm
Voice coil material
Voice coil former

sandwich polyester
Aluminium
   Kapton™

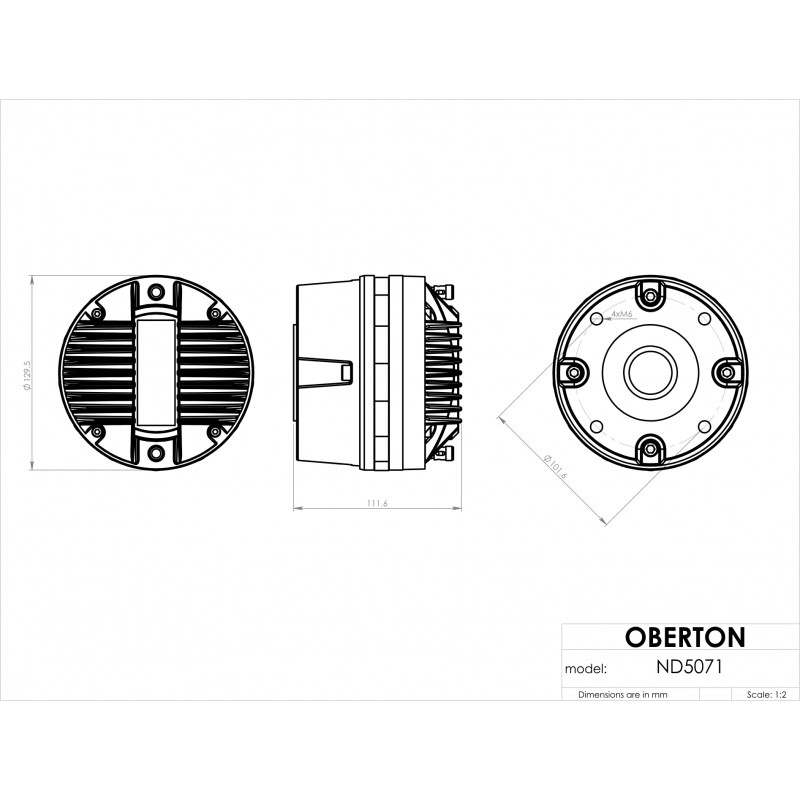

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight

130 mm
112 mm
4 x M6 on 101,6 mm (4 in.) diameter
3.18 kg




Positive voltage on red terminal moves diaphragm toward the phasing plug

Descarca fisa tehnica click to download pdf
