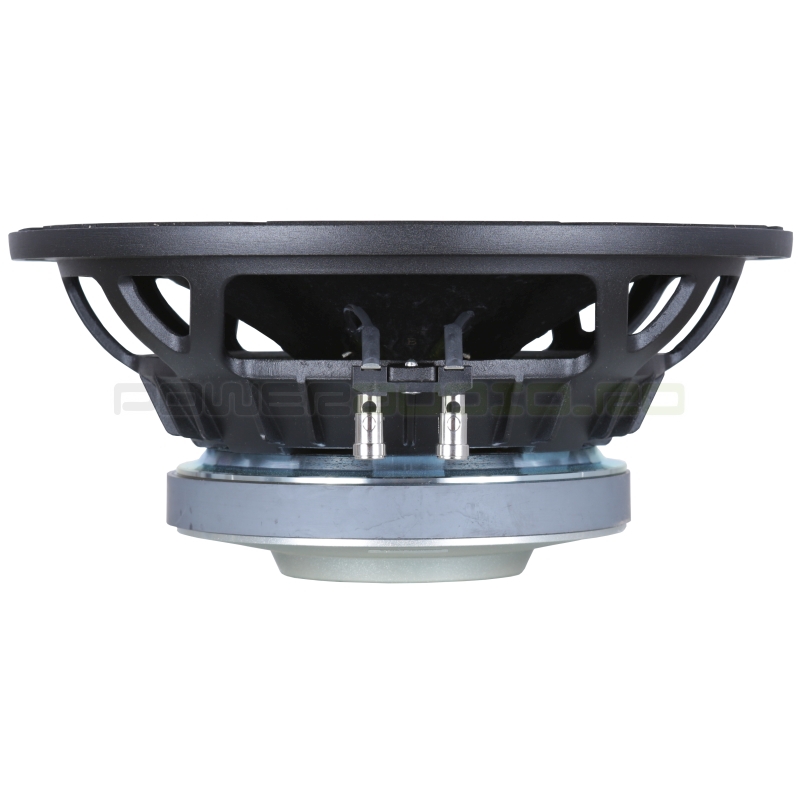

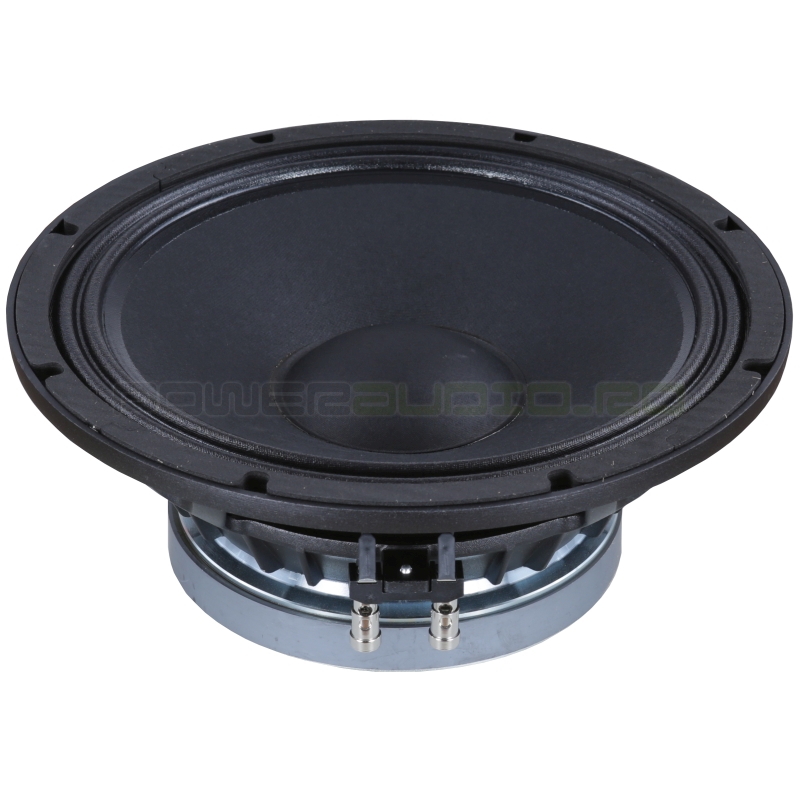

Faital Pro 12FH510 8 Ohm 12" 500W Loudspeaker Driver

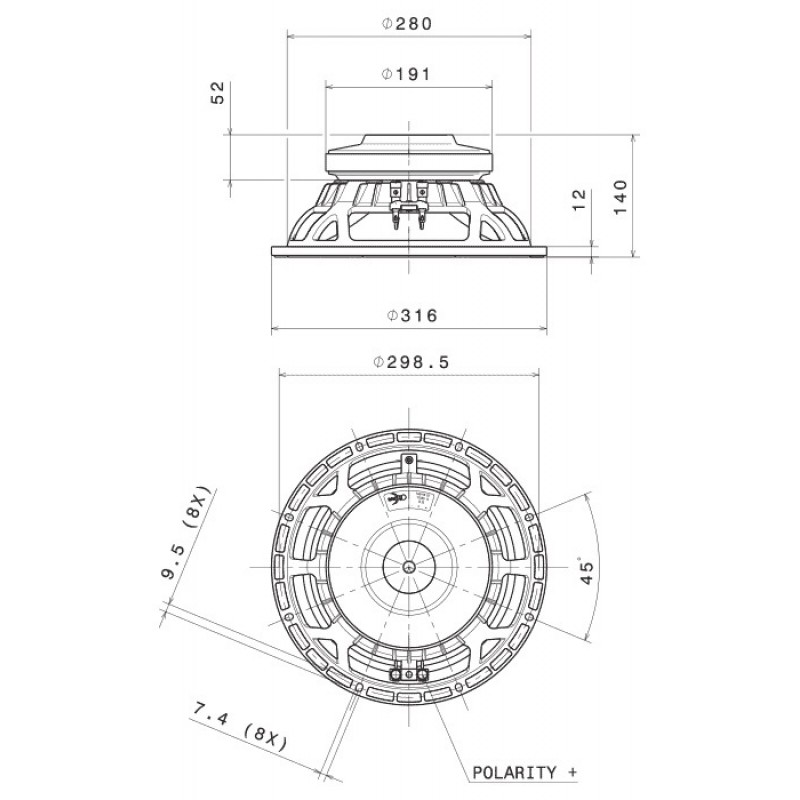

Nominal Specifications
- Nominal Diameter - 300 mm (12 in)
- Overall Diameter - 316 mm (12.44 in)
- Bolt Circle Diameter - 298.5 mm (11.75 in)
- Baffle Cutout Diameter - 282 mm (11.10 in)
- Depth - 140 mm (5.51 in)
- Flange and Gasket Thickness - 12 mm (0.47 in)
- Net Weight - 7.8 Kg (17.2 lb)
- Shipping Box(Single Carton Box) - 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in)
- Shipping Weight - 8.7 Kg (19.2 lb)
Technical Parameters

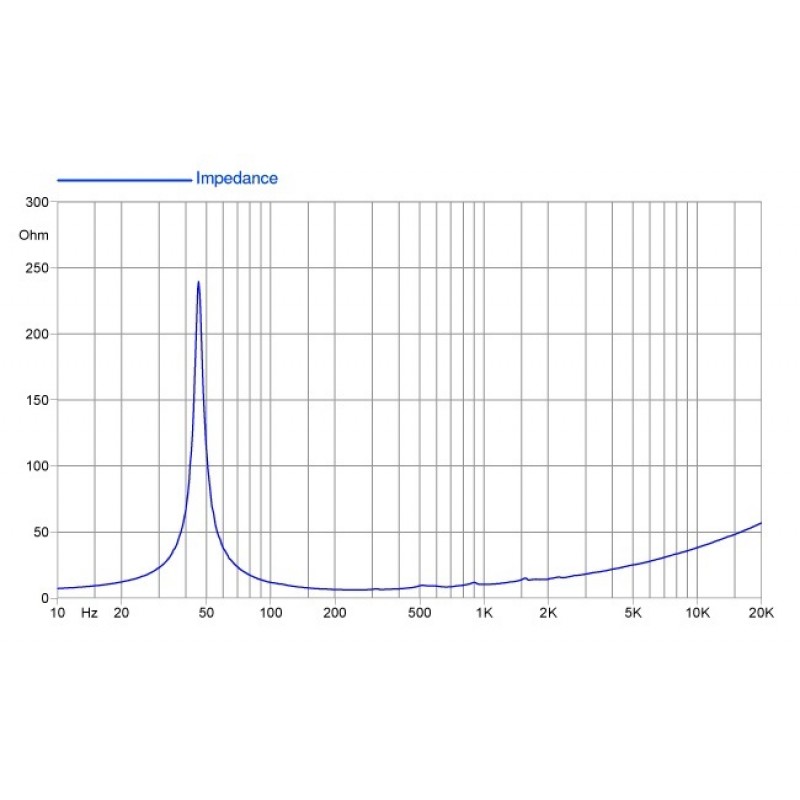

- Nominal Impedance - 8 Ohm
- Minimum Impedance - 6.4 Ohm
- AES Power Handling (1) - 500 W
- Maximum Power Handling (2) - 1000 W
- Sensitivity (1W/1m) - 98 dB

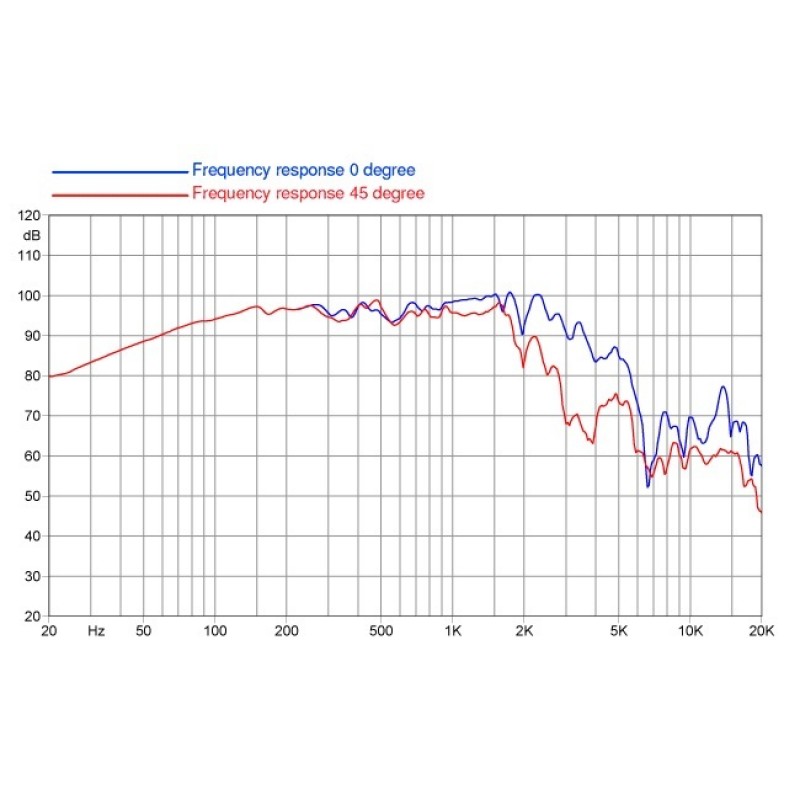

- Frequency Range - 45-3150 Hz
- Voice Coil Diameter - 77 mm (3 in)
- Winding Material - Al
- Former Material - Glass Fiber
- Winding Depth - 18.5 mm (0.73 in)
- Magnetic Gap Depth - 10.5 mm (0.41 in)
- Flux Density - 1.2 T
- Magnet - Ferrite Ring
- Basket Material - Aluminum
- Demodulation - No
- Cone Surround (3) - M-Roll
- NET Air Volume filled by Loudspeaker - 2.9 l (0.102 ft^3)
- Spider Profile - 1x variable height waves
Thiele and small parameters
- Fs - 45 Hz
- Re - 5.1 Ohm
- Qes - 0.25
- Qms - 10.9
- Qts - 0.24
- Vas - 69.6 l (2.46 ft^3)
- Sd - 489 cm^2 (75.80 in^2)
- Xmax (4) - 7.50 mm
- Xdamage (5) - 21.5 mm
- Mms - 61.0 g
- Bl - 18.9 N/A
- Le - 0.9 mH
- Mmd - 54.9 g
- Cms - 0.20 mm/N
- Rms - 1.58 Kg/s
- Eta Zero - 2.50 %
- EBP - 180 Hz
Descarca fisa tehnica
