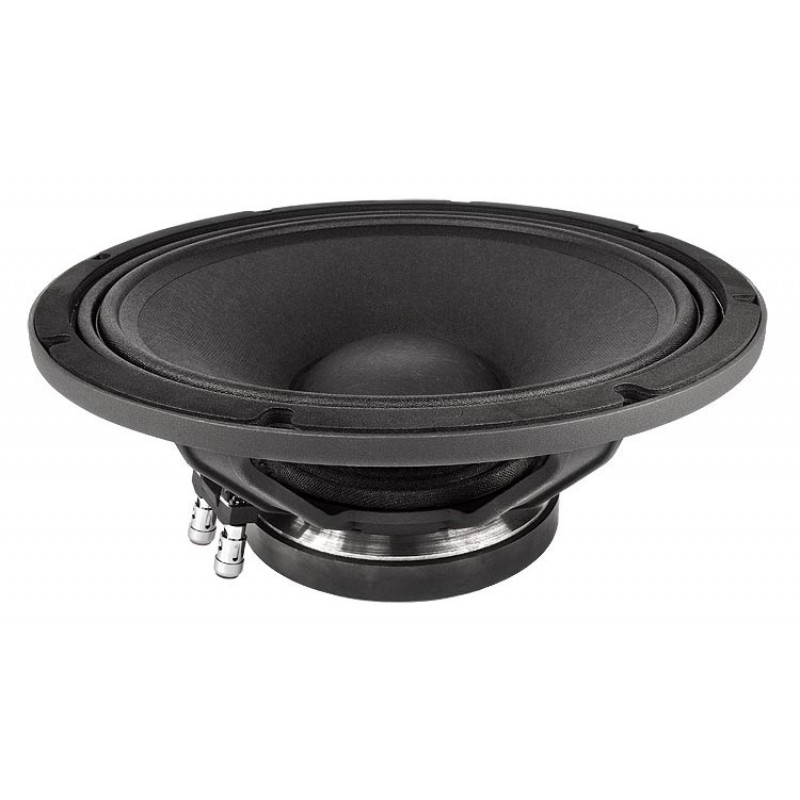

Faital Pro 12PR310 12" Speaker Driver 300 W 8 Ohm

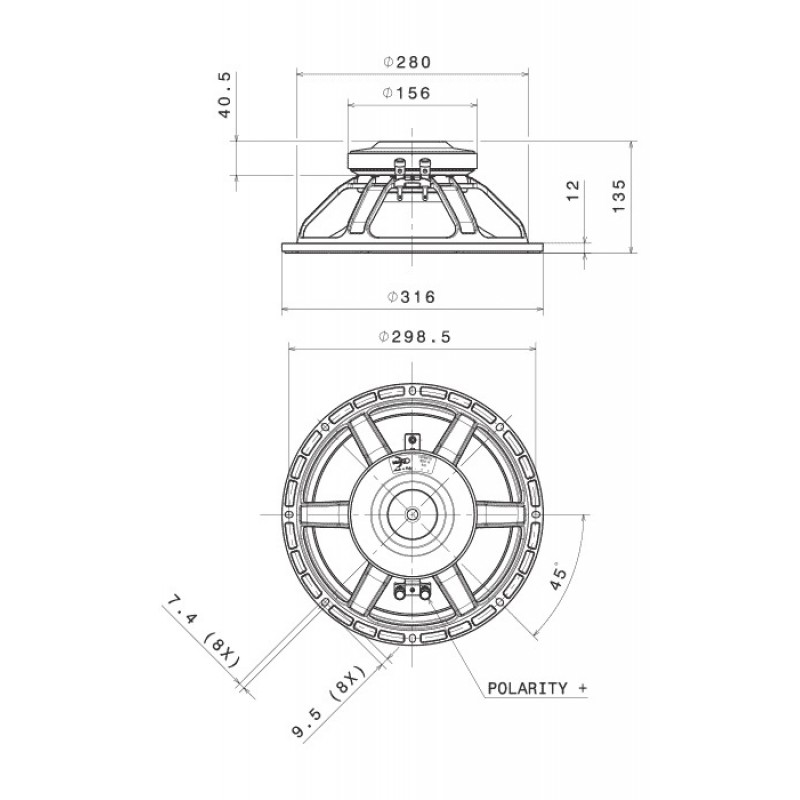

Nominal Specifications
- Nominal Diameter - 300 mm (12 in)
- Overall Diameter - 316 mm (12.44 in)
- Bolt Circle Diameter - 298.5 mm (11.75 in)
- Baffle Cutout Diameter - 282 mm (11.10 in)
- Depth - 135 mm (5.31 in)
- Flange and Gasket Thickness - 12 mm (0.47 in)
- Net Weight - 4.3 Kg (9.5 lb)
- Shipping Box(Single Carton Box) - 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in)
- Shipping Weight - 5 Kg (11.0 lb)
Technical Parameters
- Nominal Impedance - 8 Ohm
- Minimum Impedance - 6.7 Ohm
- AES Power Handling (1) - 300 W
- Maximum Power Handling (2) - 600 W
- Sensitivity (1W/1m) - 99 dB
- Frequency Range - 50-4000 Hz
- Voice Coil Diameter - 65 mm (2.56 in)
- Winding Material - Al
- Former Material - Glass Fiber
- Winding Depth - 12.5 mm (0.49 in)
- Magnetic Gap Depth - 8 mm (0.31 in)
- Flux Density - 1.2 T
- Magnet - Ferrite Ring
- Basket Material - Aluminum
- Demodulation - No
- Cone Surround (3) - M-Roll
- NET Air Volume filled by Loudspeaker - 1.9 l (0.067 ft^3)
- Spider Profile - 1x variable height waves
Thiele and small parameters
- Fs - 54 Hz
- Re - 5.4 Ohm
- Qes - 0.41
- Qms - 11.6
- Qts - 0.40
- Vas - 62.83 l (2.22 ft^3)
- Sd - 489 cm^2 (75.80 in^2)
- Xmax (4) - 4.92 mm
- Xdamage (5) - 15.25 mm
- Mms - 46.9 g
- Bl - 14.4 N/A
- Le - 0.61 mH
- Mmd - 40.1 g
- Cms - 0.18 mm/N
- Rms - 1.37 Kg/s
- Eta Zero - 2.32 %
- EBP - 132 Hz
