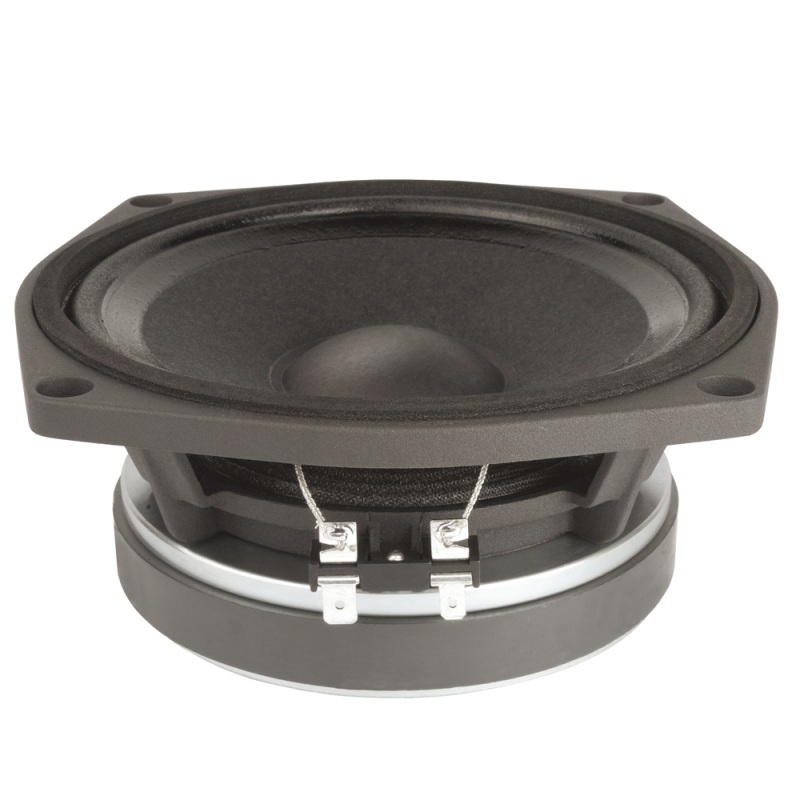

Faital Pro 6PR110 6" Speaker Driver 150W 8 Ohm
Nominal Specifications

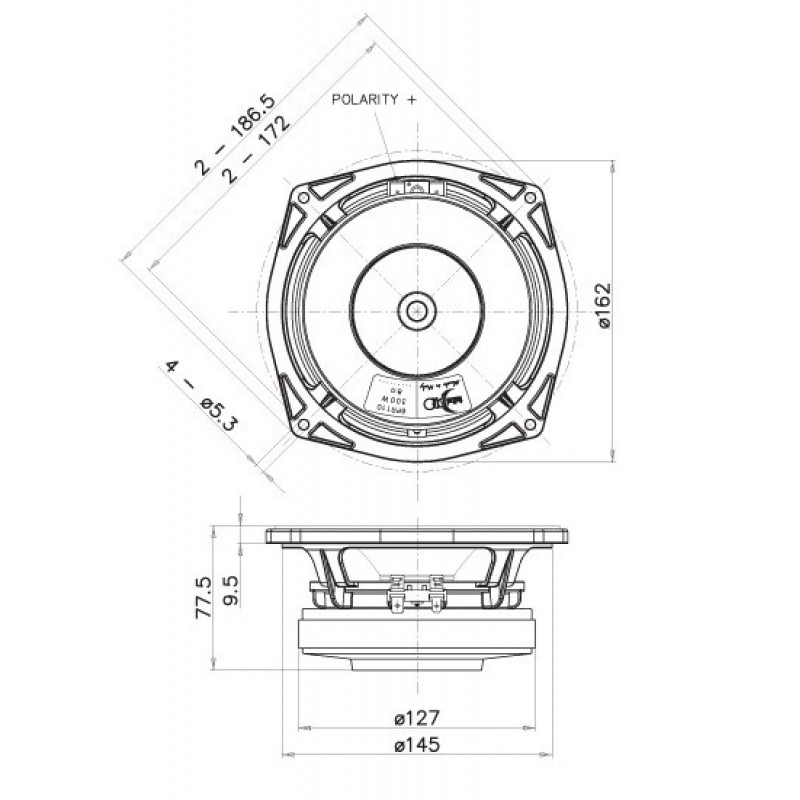

- Nominal Diameter - 160 mm (6 in)
- Overall Diameter - 186.5/162 mm (7.34/6.37 in)
- Bolt Circle Diameter - 172 mm (6.77 in)
- Baffle Cutout Diameter - 147 mm (5.79 in)
- Depth - 80 mm (3.15 in)
- Flange and Gasket Thickness - 9.5 mm (0.37 in)
- Net Weight - 2.2 Kg (4.9 lb)
- Shipping Box(Single Carton Box) - 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in)
- Shipping Weight - 2.4 Kg (5.3 lb)
Technical Parameters
- Nominal Impedance - 8 Ohm
- Minimum Impedance - 7 Ohm
- AES Power Handling (1) - 150 W
- Maximum Power Handling (2) - 300 W
- Sensitivity (1W/1m) - 96 dB
- Frequency Range - 100-6000 Hz
- Voice Coil Diameter - 37 mm (1.46 in)
- Winding Material - Al
- Former Material - Kapton
- Winding Depth - 7.5 mm (0.30 in)
- Magnetic Gap Depth - 6 mm (0.24 in)
- Flux Density - 1.35 T
- Magnet - Ferrite Ring
- Basket Material - Aluminum
- Demodulation - No
- Cone Surround (3) - Half Roll
- NET Air Volume filled by Loudspeaker - 0.7 l (0.025 ft^3)
- Spider Profile - 1x constant height waves
Thiele and small parameters
- Fs - 100 Hz
- Re - 6 Ohm
- Qes - 0.60
- Qms - 4.2
- Qts - 0.50
- Vas - 5 l (0.18 ft^3)
- Sd - 129 cm^2 (20.00 in^2)
- Xmax (4) - 2.75 mm
- Xdamage (5) - 11.6 mm
- Mms - 12.0 g
- Bl - 8.5 N/A
- Le - 0.22 mH
- Mmd - 11.2 g
- Cms - 0.20 mm/N
- Rms - 1.8 Kg/s
- Eta Zero - 0.80 %
- EBP - 167 Hz
