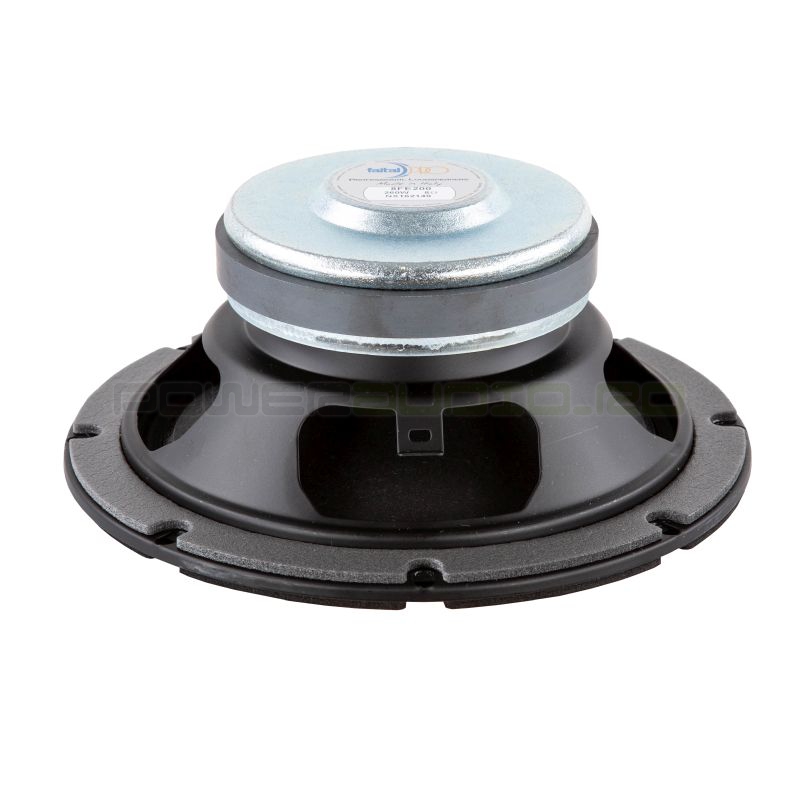

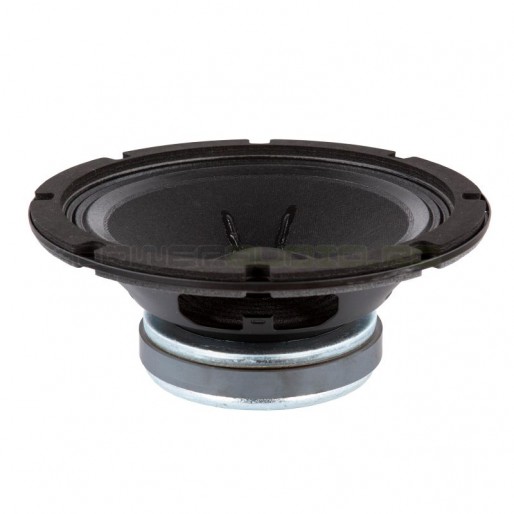

Faital Pro 8FE200 8" Speaker Driver 130W 8 Ohm
Nominal Specifications
- Nominal Diameter - 200 mm (8 in)
- Overall Diameter - 209.2 mm (8.24 in)
- Bolt Circle Diameter - 196.9 mm (7.75 in)
- Baffle Cutout Diameter - 178 mm (7.01 in)
- Depth - 89 mm (3.50 in)
- Flange and Gasket Thickness - 8 mm (0.31 in)
- Net Weight - 2.2 Kg (4.7 lb)
- Shipping Box(Single Carton Box) - 227 x 224 x 113 mm (8.9 x 8.8 x 4.4 in)
- Shipping Weight - 3 Kg (6.6 lb)
Technical Parameters
- Nominal Impedance - 8 Ohm
- Minimum Impedance - 6.8 Ohm
- AES Power Handling (1) - 130 W
- Maximum Power Handling (2) - 260 W
- Sensitivity (1W/1m) - 95 dB

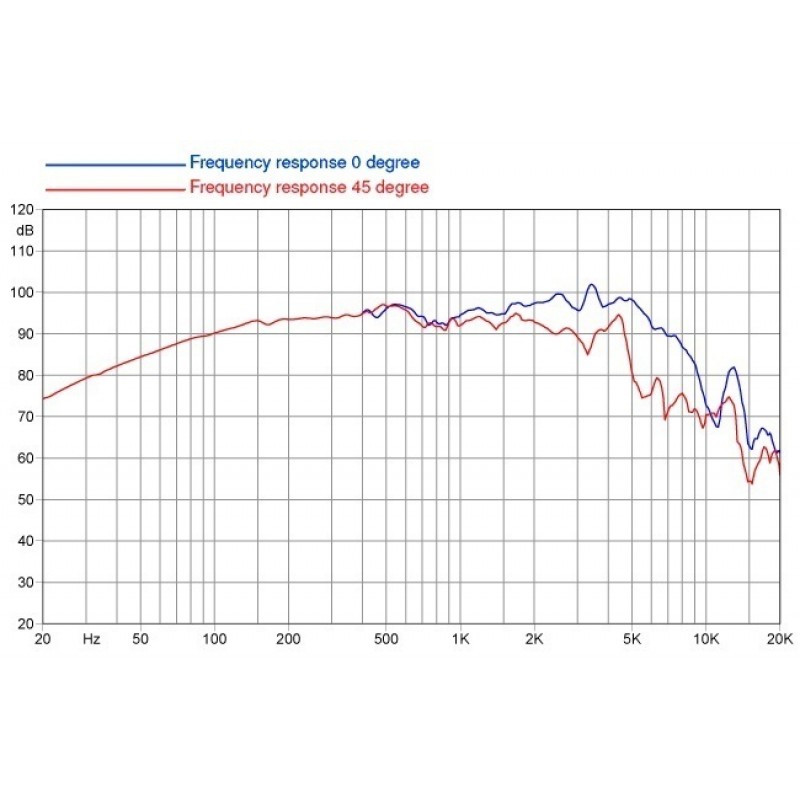

- Frequency Range - 60-5000 Hz
- Voice Coil Diameter - 37 mm (1.46 in)
- Winding Material - Al
- Former Material - Kapton
- Winding Depth - 12 mm (0.47 in)
- Magnetic Gap Depth - 8 mm (0.31 in)
- Flux Density - 1 T
- Magnet - Ferrite Ring
- Basket Material - Steel
- Demodulation - No
- Cone Surround (3) - Triple Roll
- NET Air Volume filled by Loudspeaker - 0.6 l (0.021 ft^3)
- Spider Profile - 1x constant height waves
Thiele and small parameters
- Fs - 80 Hz
- Re - 5.9 Ohm
- Qes - 0.66
- Qms - 13.0
- Qts - 0.63
- Vas - 13.6 l (0.48 ft^3)
- Sd - 191 cm^2 (29.61 in^2)
- Xmax (4) - 4.67 mm
- Xdamage (5) - 10.4 mm
- Mms - 15.0 g
- Bl - 8.2 N/A
- Le - 0.44 mH
- Mmd - 13.5 g
- Cms - 0.26 mm/N
- Rms - 0.6 Kg/s
- Eta Zero - 1.02 %
- EBP - 121 Hz
Descarca fisa tehnica
