Faital Pro STH 100
  • Faital Pro STH 100
  • Faital Pro STH 100
  • Faital Pro STH 100
  • Faital Pro STH 100
  • Faital Pro STH 100
  • Faital Pro STH 100
  • Faital Pro STH 100
  • Faital Pro STH 100

Cere mai multe informatii despre Faital Pro STH 100 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 160,00 Lei
Fără TVA: 134,45 Lei
4 bucati in stoc
Producător: Faital PRO
Cod produs: 12131
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: Faital pro sth 100 horn difuzoare profesionale horn professional horn faital pro horn 1' horn prindere suruburi horn 80x70
Faital Pro STH 100 1" Bolt On Aluminium Horn Flare 80 x 70 Dispersion



Nominal Specifications
  • Throat Diameter 1", 25.4 mm
  • Frequency Range 1 - 20 kHz
  • Recomended Crossover Frequency(1) 1.4 kHz
  • Horizontal Nominal Coverage (-6dB) (2) 80 degrees
  • Vertical Nominal Coverage (-6dB) (2) 70 degrees
  • Directivity Index (2) (4) 8 dB

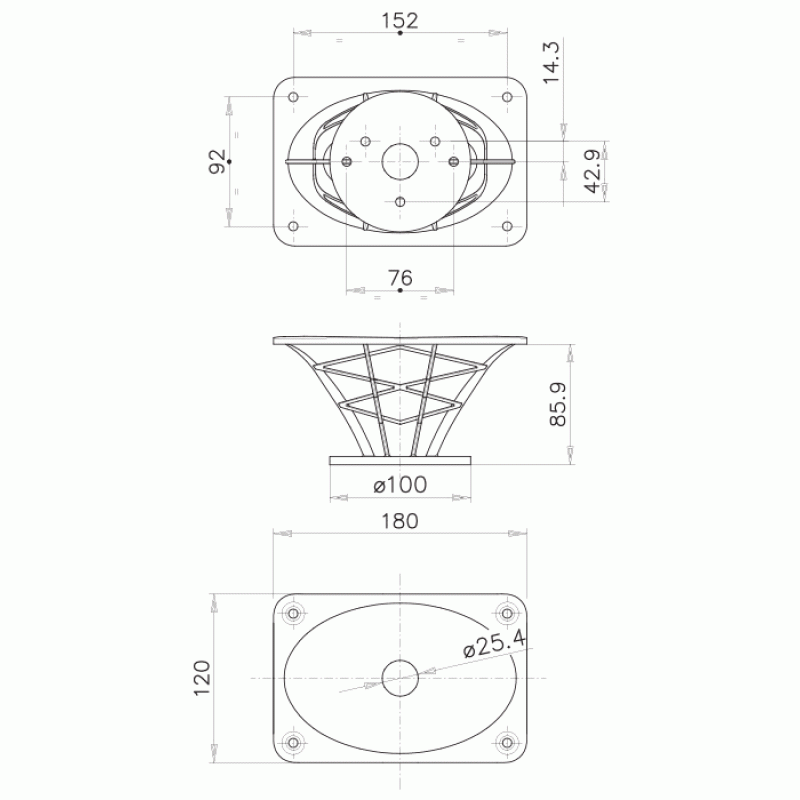

  • Overall Height 4.72", 120 mm
  • Overall Width 7.09", 180 mm
  • Mounting cutout 155 x 95mm (elliptical - maximum dimensions stated)
  • Depth 3.38", 85.9 mm
  • Mouth Mounting Holes (4x) 0.26", 6.5 mm
  • Mounting hole positions: 152 x 92mm
  • Material Aluminium

Descarca fisa tehnica click to download pdf
