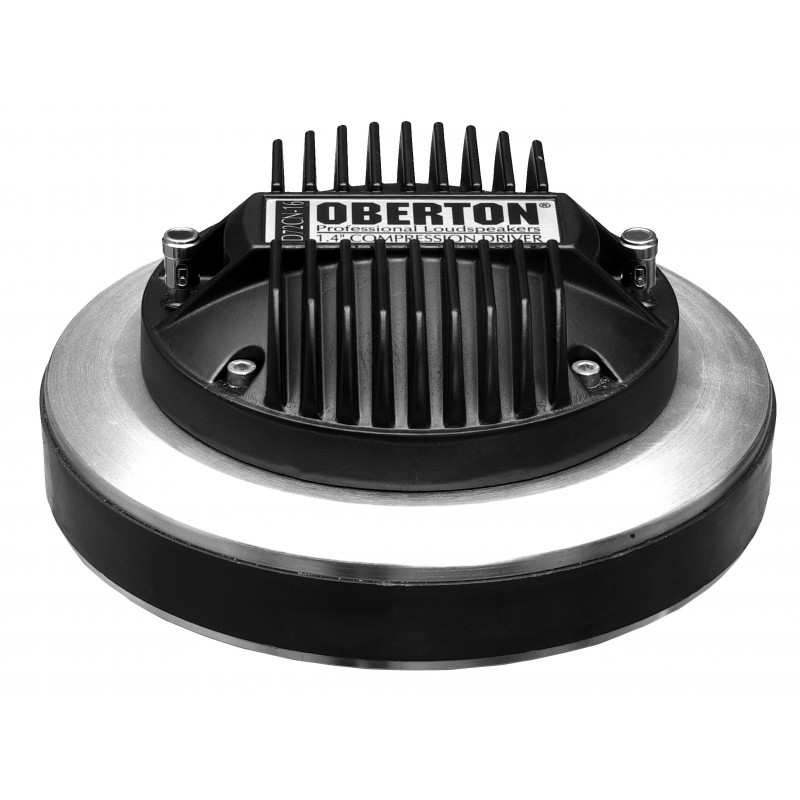

The D72CN is 1.4” high frequency compression driver, which features a carbon composite dome and high damped vented suspension, providing exceptional high output with low distortion and frequency response with high linearity. It is designed for application in high level professional sound equipment.



SPECIFICATIONS

Throat diameter
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (1-20 kHz)
Program Power Capacity (1-20 kHz)
Sensitivity (1-10 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density

36 mm (1.4 in.)
16 Ohms
11.7 Ohms
10 Ohms
100 W
200 W
109 dB
0,5 - 18 kHz
1 kHz or higher 12 dB/oct.min
72 mm (2,85 in.)
1,85 T

MATERIALS OF CONSTRUCTON

Diaphragm
Voice coil material
Voice coil former

Carbon composite
CCAW
Kapton™


Positive voltage on red terminal moves diaphragm toward the phasing plug

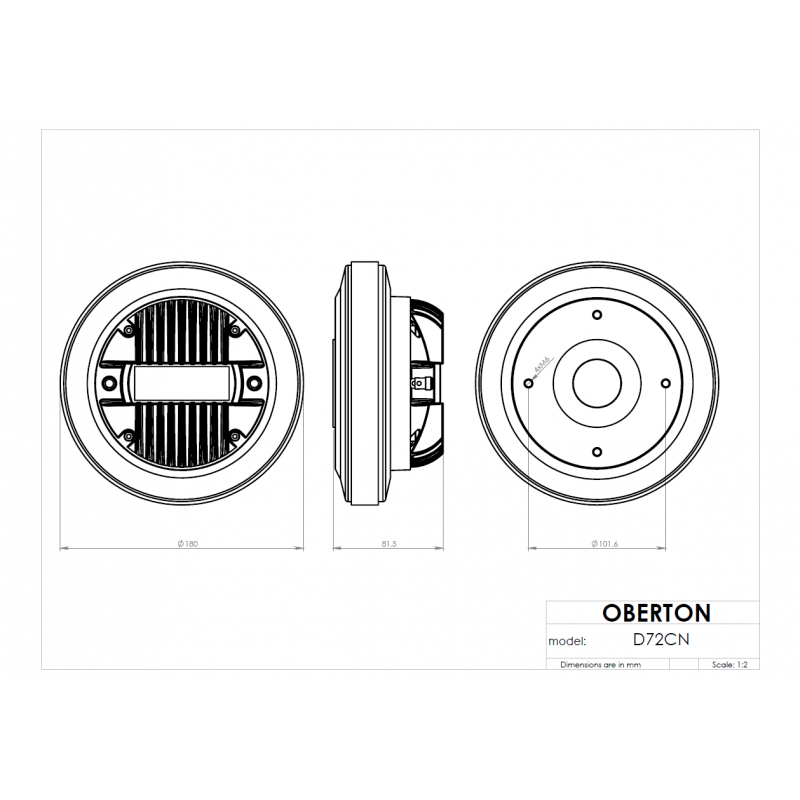

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight

180 mm
81.5 mm
4 x M6 on 101,6 mm (4 in.)diameter
6.9 kg
