Oberton D71CN
  • Oberton D71CN
  • Oberton D71CN

Cere mai multe informatii despre Oberton D71CN la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 606,00 Lei
Fără TVA: 509,24 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton D71CN
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: oberton driver oberton oberton d71cn driver 1.5 inch driver putere

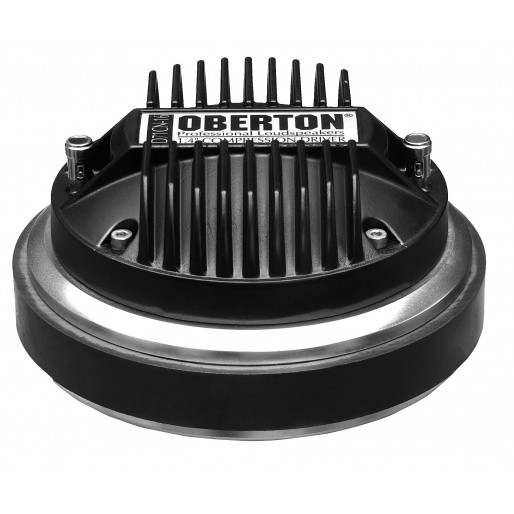

The D71CN is 1.4” high frequency compression driver, which features a carbon composite dome and high damped vented suspension, providing high output with very low distortion and very good response from 700 to 17500 Hz. The voice coil assembly is easily fielded replaceable without soldering. The D71CN driver offers all the benefits of new line of OBERTON drivers at reduced cost and weight.



SPECIFICATIONS

Throat diameter
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (1-20 kHz)
Program Power Capacity (1-20 kHz)
Sensitivity (1-10 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density

36 mm (1.4 in.)
16 Ohms
11.7 Ohms
10 Ohms
100 W
200 W
108.5 dB
0,5 - 17.5 kHz
1 kHz or higher 12 dB/oct.min
72 mm (2,85 in.)
1,6 T

MATERIALS OF CONSTRUCTON

Diaphragm
Voice coil material
Voice coil former

Carbon composite
CCAW
Kapton™


Positive voltage on red terminal moves diaphragm toward the phasing plug

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight

156 mm
83 mm
4 x M6 on 101,6 mm (4 in.)diameter
4.2 kg
